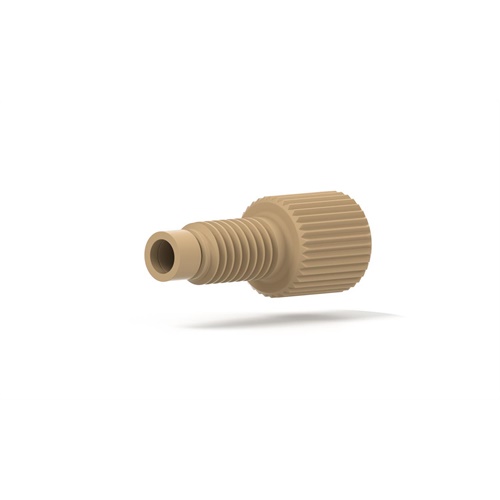

One-Piece Super Flangeless™ Assembly M6 Flat-Bottom for 1/8" OD

IDEX Part Number: P-329  /

Our All-PEEK One Piece Super Flangeless Fitting Assembly is an ideal choice those connections that need to be broken frequently and tubing assemblies because they swage onto the tubing. Manufactured from biocompatible PEEK it delivers excellent chemical resistance. It has an M6 Flat-Bottom port configuration and is for 1/8OD Tubing. Designed for use with Fluoropolymer tubing only.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 53.06 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Head Style Standard Knurl
Material PEEK
Pressure Rating Max (bar) 69
Thread Port Configuration Flat-Bottom M6
Topic Description
One-Piece Super Flangeless Instruction Guide Learn how to install the super flangeless fitting system into a fluidic instrument

Specifications

Topic Description
One-Piece Super Flangeless Instruction Guide Learn how to install the super flangeless fitting system into a fluidic instrument
