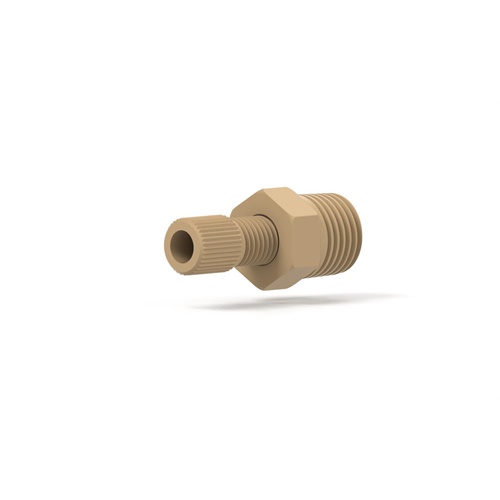

NPT Adapter Assembly PEEK 3/16" 1/4 NPT Male x 5/16-24 Female

IDEX Part Number: U-504  /

Our NPT (National Pipe Thread) Adapter Assembly is specifically manufactured from PEEK making it durable and chemically resistant. It is optimally suited for low pressure applications. It has a tubing OD of 3/16 and it's thread configuration is 1/4 NPT Male to 5/16-24 Flat-Bottom Female ports. It is natural color and comes with (1)OD x P-132 Fitting.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 21.77 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
Color Natural
For Tubing OD (in) 3/16
Material PEEK
Pressure Rating Max (bar) 34
Thru hole (in) 0.125
Thru hole (mm) 3.17
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
