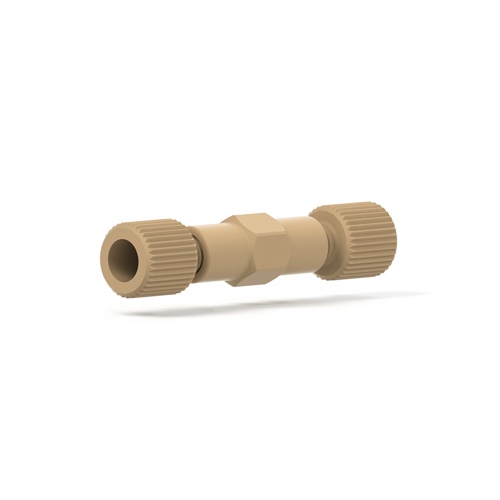

NanoTight Union, PEEK Natural

IDEX Part Number: P-779  /

Our NanoTight Union has an enhanced internal design that greatly reduces the incidence of tubing misalignment. It's webbed thru-hole prevents the breaking of fused silica and produces minimal swept volume which results in fewer blockages, fewer rate reductions and fewer back pressure problems. It comes with (2)F-331N fittings.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 65.88 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
Color Natural
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 345
Swept Volume nL 8
Thread Port Configuration Coned 10-32
Thru hole (in) 0.005
Thru hole (µm) 125

Specifications
