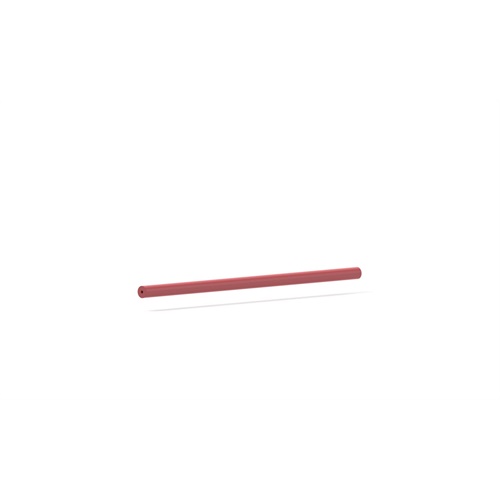

NanoTight™ Sleeve Red 1/16" OD x .024" ID x 1.6"

IDEX Part Number: F-245  /

Our NanoTight Tubing Sleeve is specifically cut to a precise 1.6 length. Our sleeves are carefully manufactured using FEP fluoropolymer – a highly inert, melt-processed polymer that serves as an excellent alternative to PTFE. These sleeves are available in a light tinted color that allows easy identification of the ID. They are primarily used with NanoTight Fittings and work well with Super Flangeless Fittings. It comes in Red.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 3.12 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Length (in) 1.6
Pressure Rating Max (psi) 4000
Color Red
For Tubing OD (µm) 555-595
Pressure Rating Max (bar) 276
Tubing Sleeve ID (in) 0.024
Tubing Sleeve OD (in) 1/16
TopicDescription
Capillary Tubing Connectors Using Tubing Sleeves Instruction GuideFind instructions how to insert your capillary tubing into the appropriate tubing sleeve

Specifications

TopicDescription
Capillary Tubing Connectors Using Tubing Sleeves Instruction GuideFind instructions how to insert your capillary tubing into the appropriate tubing sleeve
