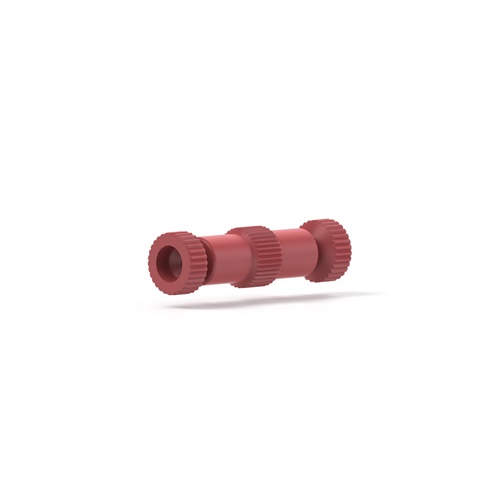

MicroTight® Unions Assembly 1/32"

IDEX Part Number: P-771  /

Our MicroTight Unions Assembly is used specifically to easily connect capillary tubing together. True ZDV (Zero Dead Volume) allows two pieces of tubing to connect directly to each other using the included gauge and plug to ensure proper alignment. This allows for an uninterrupted fluidic path. It is for use with 1/32OD Tubing and includes (2) F-126S Fittings and (1) P-553 Gauge.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 47.51 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (in) 1/32
Material PEEK
Pressure Rating Max (bar) 345
Thread Port Configuration Coned 6-32
Topic Description
MicroTight Union Instruction Guide Learn how to use a MicroTight Union from IDEX Health & Science
MicroTight® Fittings Used with Fused Silica Tubing Please take care when tightening the Micro-Fingertight fittings included in this package, making sure to only tighten sufficiently to prevent leaks from occurring. Due to the nature of most capillary-sized tubing, it is possible to damage the tubing if the fittings are overtightened.
