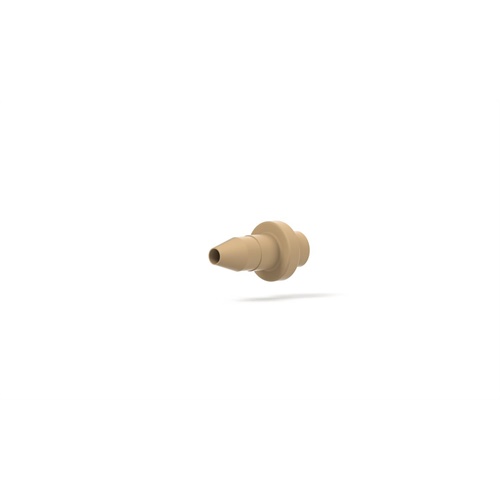

MicroTight® Ferrule 5/16-24 Coned, for 1/16" OD

IDEX Part Number: F-132  /

This MicroTight Ferrule is part of a family of fittings which offer a unique system consisting of three different ferrules and a female nut. It is designed to use the applicable ferrule to connect tubing to our MicroTight connectors, such as MicroTees and MicroCrosses. This ALL PEEK ferrule delivers excellent chemical resistance. It has a 5/16-24 Coned port configuration and is for a 1/16OD. It comes in natural color.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 18.85 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
Color Natural
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 345
Thread Port Configuration Coned 5/16-24

Specifications
