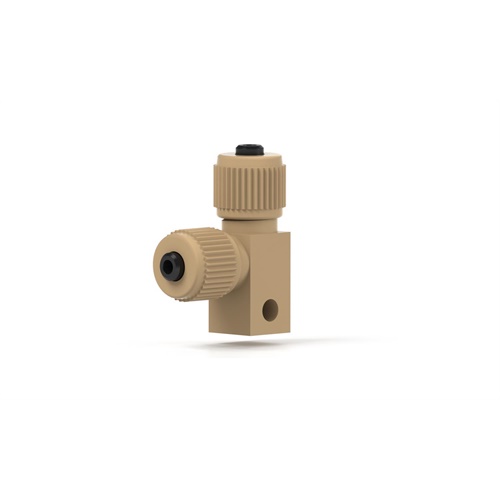

MicroElbow Assembly w/Mounting Hole

IDEX Part Number: P-874  /

Our MicroElbow Assembly is used specifically to connect MicroTight tubing sleeves together. It features a convenient mounting hole for easy placement. It includes (2) F-172 fittings and (2) P-416 Micro-Fingertight Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 144.25 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 4000
For Tubing OD (in) 0.025
Material PEEK
Pressure Rating Max (bar) 276
Swept Volume nL 20
Thru hole (in) 0.006
Thru hole (mm) 0.15
Topic Description
MicroTee & MicroCross Instruction Guide Learn how to install MicroTee and MicroCross connectors onto your tubing.
