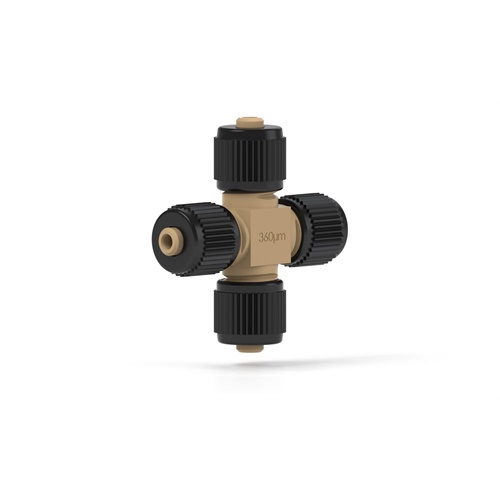

MicroCross PEEK 360µm w/Fittings

IDEX Part Number: P-889  /

Our Biocompatible, MicroCross is used to effectively join 360um capillary tubing together. It is specifically designed with a 0.006 thruhole that delivers a low swept volume. It is made from inert PEEK, which is ideal for chemical resistance. It includes (4) F-152 and (4) P-416BLK Fittings.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 167.57 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (µm) 360
Material PEEK
Pressure Rating Max (bar) 345
Swept Volume nL 38
Thread Port Configuration Coned 5/16-24
Thru hole (in) 0.006
Thru hole (mm) 0.15

Specifications
