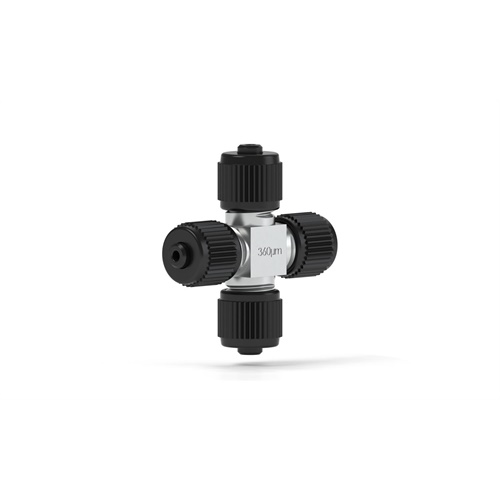

MicroCross Assembly for 360µm OD

IDEX Part Number: UH-752  /

Our VHP MicroCross Assembly's unique design creates a direct connection for tubing; no sleeves required. It is manufactured from durable stainless steel and features a small thru-hole and very low internal volume. Stainless steel delivers excellent chemical compatibility and conductivity making it an ideal choice when electrical applications are in use. It is for 360µm OD tubing and has a thread of 5/16-24 Coned. It comes with (4) PK-152 and (4)P-416BLK Fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 305.62 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 15000
For Tubing OD (µm) 360
Pressure Rating Max (bar) 1034
Swept Volume nL 101
Thread Port Configuration Coned 5/16-24
Thru hole (in) 0.01
Thru hole (mm) 0.25

Specifications
