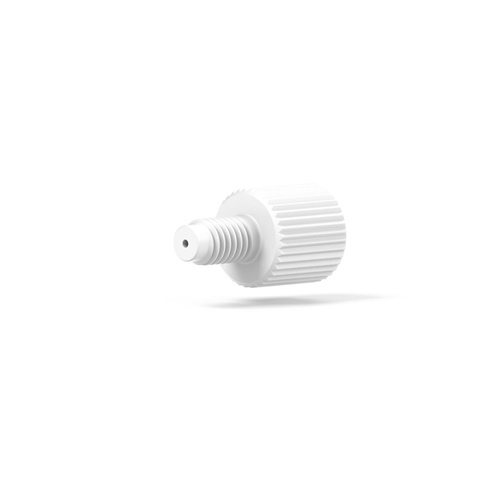

Metric Threaded Adapter 1/4-28-Female to M6-Male

IDEX Part Number: P-694  /

Our Metric Threaded Adapter is used specifically to attach connectors with different threads. It is made of PEEK which has excellent thread strength. It has a Female 1/4-28 to Male M6 Flat-Bottom port configuration and includes no fittings.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 33.22 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 11.3
Thread to Thread Female to Male
Thru hole (in) 0.04
Thru hole (mm) 1

Specifications
