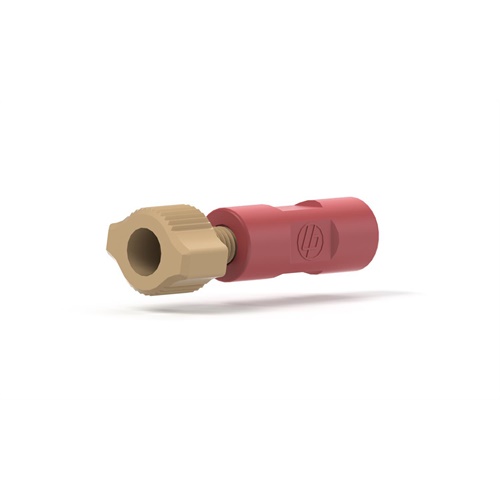

Metric Adapter Assembly 10-32 Coned x M6 Flat-Bottom, .020 thru hole

IDEX Part Number: P-626  /

Our PEEK, Metric Threaded Adapter Assembly is ideal for bringing together connectors with different threads. The P-626 has a Female 10-32 Coned to Female M6 Flat-Bottom design. It included (1) F-300 Fingertight Fitting.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 35.19 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Material PEEK
Swept Volume µL 0.3
Thread Port Configuration Flat-Bottom 10-32 to M6
Thread to Thread Female to Female
Thru hole (in) 0.02
Thru hole (mm) 0.5
TopicDescription
Connect Fingertight Fittings to Your Fluidic SystemLearn how to connect one-piece or two-piece fittings to tubing
