Frit-in-a-Ferrule™ 2µm Super Flangeless™ PEEK/SST Ring Natural - Single

IDEX Part Number: P-370  /

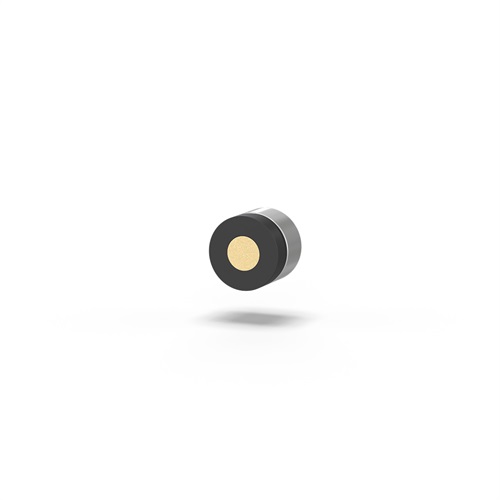

Our Frit-in-a-Ferrule offers a unique design that seals and filters simultaneously by incorporating a frit into the body of a flat-bottom ferrule. Our biocompatible PEEK Super Flangeless ferrule comes with a stainless frit and steel lock ring. It has a porosity 2µm comes in natural color as a single or in a 10 pack.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 13.96 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Frit Material Stainless Steel
Pressure Rating Max (psi) 2500
Color Natural
Disc Diameter (in) 0.062
Disc Thickness (in) 0.062
For Tubing OD (in) 1/8
Porosity µm 2
Pressure Rating Max (bar) 172
Swept Volume µL 0.74
Topic Description
Flangeless Super Flangeless Frit-in-a-Ferrule Instruction Guide Learn how to install Frit-in-a-Ferrule assemblies onto tubing
