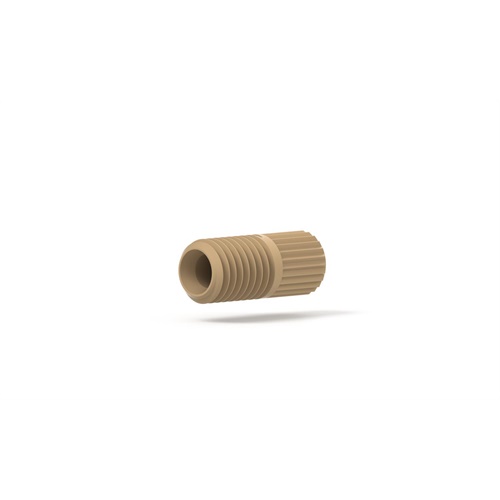

Flangeless Short Headless Nut 1/14-28 Flat-Bottom, for 1/8" OD

IDEX Part Number: P-348  /

Our Flangeless Short Headless Nut is easy to use, eliminates the need to flange tubing and is reusable. It's biocompatible PEEK construction ensures good pressure holding ability and long-term durability. It has a 1/4-28 thread port configuration and is for 1/8OD tubing. Our nut comes in natural color.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 4.11 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
Color Natural
For Tubing OD (in) 1/8
Head Style Headless Knurl
Length Style Short
Material PEEK
Pressure Rating Max (bar) 34
Thread Port Configuration Flat-Bottom 1/4-28
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
