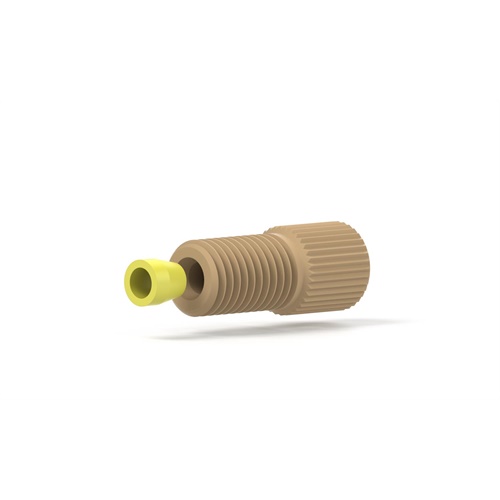

Flangeless Fitting PEEK 5/16-24 Flat-Bottom, for 1/8" OD

IDEX Part Number: XP-130  /

Our Flangeless Fittings systems are designed to include both a nut and ferrule for your convenience. Flangeless fittings are excellent replacements for flanged fittings. Flangeless fitting are dependable, easy to use and easy to replace. It has a 5/16-24 Flat-Bottom port configuration and is for 1/8" OD tubing. Our Fitting System comes with the P-300.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 8.51 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 500
For Tubing OD (in) 1/8
Head Style Standard Knurl
Pressure Rating Max (bar) 34
Thread Port Configuration Flat-Bottom 5/16-24
TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
