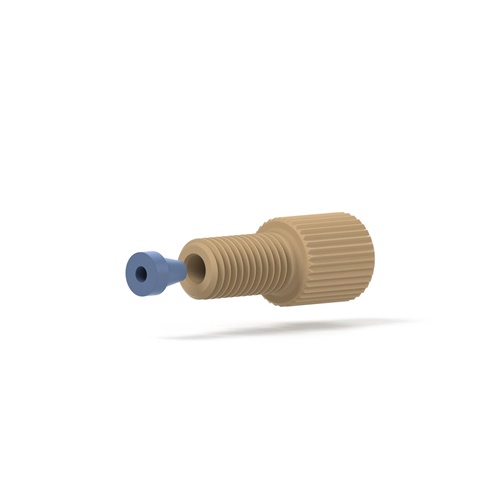

Flangeless Fitting Natural, PEEK, 1/4-28 Flat-Bottom, for 1/16" OD

IDEX Part Number: XP-230  /

Our Short Flangeless PEEK Fitting is designed to include both a nut and ferrule for your convenience. Flangeless fitting are dependable, easy to use and easy to replace. Manufactured with biocompatible PEEK it offers excellent chemical resistance. It has a 1/4-28 Flat-Bottom port configuration and is for 1/16 OD tubing. Our Fitting System comes with a P-200 ferrule.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 6.44 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Thread Port Design   1/4-28 Flat-Bottom
Pressure Rating Max (psi) 2000
For Tubing OD (in) 1/16
Head Style Standard Knurl
Pressure Rating Max (bar) 138
Out of Stock Backordered In Stock
Out of Stock Backordered In Stock
Out of Stock Backordered In Stock

1 of 1

TopicDescription
Flangeless Fitting System Connection GuideUse this guide to connect your fluidic path.
TopicDescription
Fittings 101 GuideDiscover the fundamentals of equipment fittings and accessories, as well as some basics about liquid chromatography as an analytical technique.
Fittings 101 Guide Video SeriesIn this series of videos, you will learn the basics of connections and fittings including: What a fitting is and how it works. How to differentiate between types of nuts and ferrules. Why choosing the correct fittings for your application is integral to making a perfection connection. And how to easily achieve perfect UHPLC connections with our torque limiting technology.
Periodic Table of Analytical FittingsOur Periodic Table of Analytical Fittings illustrates over 100 analytical fittings’ pressure rating, tubing size, head style, fitting material, and torque required.
Materials GuideExplore our material properties guide by selecting the material of your choice from the list provided to view properties and solvent compatibility.
Chemical Compatibility Guide This Chemical Compatibility guide will allow you to either check what materials will work with the chemicals you are using or planning to use; or view what compatibility ratings are given to a material you are planning to use.
