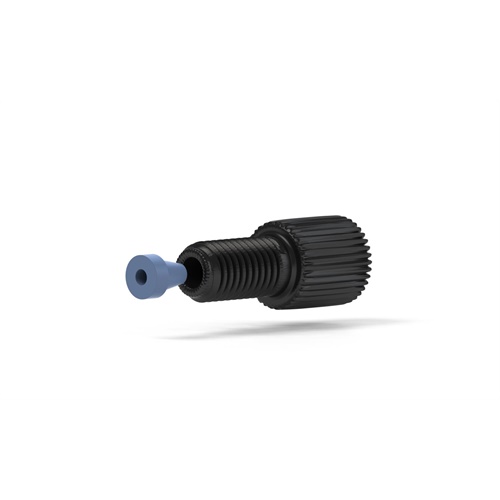

Our Flangeless Fittings are designed to include both a nut and ferrule for your convenience. Flangeless fittings are excellent replacements for flanged fittings. Flangeless fitting are dependable, easy to use and easy to replace. It has a 1/4-28 Flat-Bottom port configuration and is for 1/16 OD tubing. Our Fitting System comes with the P-200 ferrule.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
3.58 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 1/4-28 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch |
| Material | Delrin, ETFE |
| Pressure Rating | 2000 psi (138 bar) |
| Fitting Type | Nut, Ferrule |
| Head Style | Standard Knurl |
total selected
Clear selection
Select all 4 products from all pages.
FEP Tubing 1/16" OD x .030" ID
1520L / 0
- Natural, clear color
- 50 ft length
- Flexible, highly chemical-resistant plastic tubing
- Maximum temperature up to 200°C
1/16" OD Ferrule, Flangeless
P-200X / 0
- For use with 1/16” OD tubing mating with flat bottom ports
- Blue ETFE material
- Recommended for pressures up to 2000 psi (138 bar)
- 10 per pack
1/16" OD Nut, Flangeless
P-201 / 0
- For use with 1/16" tubing mating with a 1/4-28 port
- Black Delrin material
- Compatible with standard knurl extender tools
- 1 per pack
1/16" OD Fitting, Flangeless Short
XP-235X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, blue ETFE ferrule
- Include P-200 Flangeless ferrule
- Recommended for pressures up to 2000 psi (1348bar)
- 10 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
