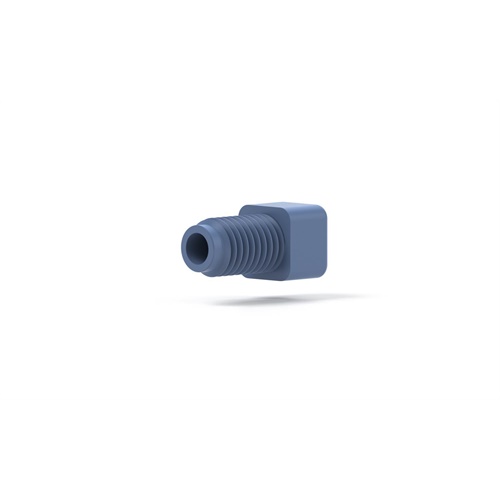

Flanged Fitting w/ Washer, Square, for 1/8" OD - Blue

IDEX Part Number: P-506 /

Call 1-800-426-0191 for more information on how to purchase this product.

Click here Check in other locations Check for Replacements

This product is obsolete! Check for Replacements

No direct substitute. For Fluidics, contact Technical Support at IHSTechSupport@idexcorp.com // For Optical Filters, contact semrock@idexcorp.com

Our Flanged Fitting is made from versatile Delrin. Our versatile Delrin nut resists cross threading or loosening during use delivering excellent dimensional stability. This fitting is compatible with a 1/4-28 Flat-Bottom port geometry. Our Delrin fitting has a 5/16 Square Head style and is for is for 1/8OD Tubing. It comes in blue.

Looking for a CAD file for this product? Request a CAD now!
