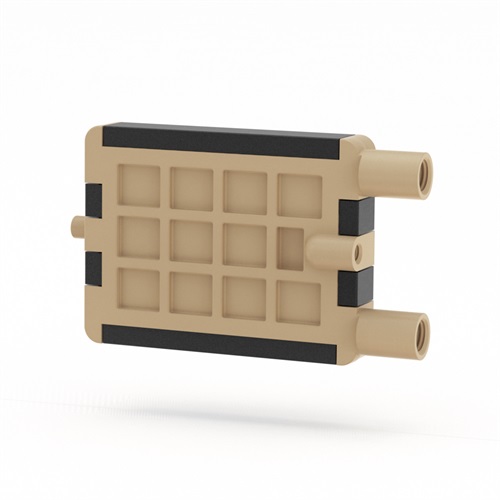

Film Degassing Chamber

IDEX Part Number: 9000-2071  /

Call 1-800-426-0191 for more information on how to purchase this product.

Engineered with a unique flow channel design and significantly shorter fluid and membrane diffusion paths, the 9000-2071 is a 500 μL degassing chamber in a flat film format with ¼-28 flat bottom liquid ports. The fluoropolymer membrane & PEEK chamber is designed to degas solvents at the highest performance levels available for analytical scale HPLC systems. In a small form factor, with reinforced Teflon™ AF film; this degassing chamber has a metal free flow path and universal solvent compatibility, which includes HFIP and Hexane. The sleek, patented chamber design enables low flow restriction when compared to the lumen based chambers. Lower flow restriction than tubing based degassers. Non-metallic flow path, which enables universal application of a single type of degasser to multiple types of HPLC systems.  Small form factor with no internal tubing fittings to leak. Lowest vacuum volume to limit initial pervaporation of volatiles. Universal coverage of all flow rate ranges to as great as 10 mL/min or more depending on style of HPLC system. Universal solvent compatibility, except for solvents known to adversely affect Teflon™ AF (see solvent compatibility guide). Solvent flush-out similar to tubing style degassers. Flow restriction is constant regardless of applied vacuum. Lower environmental impact: High pressure vacuum degassing reduces or eliminates solvent vapor discharge into the laboratory atmosphere. When the Film Degasser is paired with our new StabiliX dual-stage molded pump, this integration can provide powerful performance control with increased solvent compatibility. The methodology allows you to select a fixed-efficiency of degassing for any HPLC separation method. This enables consistent operation at higher applied vacuum pressures, while reducing pervaporation and associated mobile phase changes.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

Length (in) 2.91
Internal Volume µL Nominal 500
Chemical Compatibility See Product Datasheet
Height (in) 0.52
Max Flow Rate (mL/min) 10
Max Pressure Rating 27 PSIG
Mounting Threaded 6-32 UNC-2B
Vacuum Flow Path Materials PEEK
Width (in) 1.65
TopicDescription
Complete UHPLC Bioinert Sample Flow PathToday’s samples are challenging and include bio-molecules, peptides, proteins, nucleic acids, and antibodies. The need to minimize or remove unwanted sample interaction with wetted surfaces has become critical. That is why we have developed the BioVersal™ set of products that create a complete, bioinert flow path for your most challenging samples. Learn more in our flyer.
Constant Performance HPLC Degassing White PaperIn HPLC separations, the reduction of dissolved air from the mobile phase is of critical importance to the stability of system flow rate, to mobile phase composition and, accordingly, to the proper identification of compounds separated by the HPLC system. For this reason, nearly all HPLC systems include some form of degassing of the mobile phase. Learn more in our white paper.
Film Degasser BrochureOur Film Degasser uses patented, cutting-edge technology that gives you powerful performance control with increased solvent compatibility. Utilizing a high-efficiency membrane and unique flow channel design, it provides the lowest fluidic resistance in the industry. Learn more in our brochure.
