448/522/597/706 nm BrightLine® quad-band bandpass filter

Semrock Part Number: FF01-448/522/597/706-25

IDEX Part Number: FL-439800  /

Semrock
Individual multiband fluorescence bandpass filters that utilize Semrock's patented single-substrate construction. These filters have extremely high transmission, steep and well-defined edges, and outstanding blocking between the passbands. All thin-film, hard-coated construction for unsurpassed performance and reliability.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 649.60 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Add to List Add to List

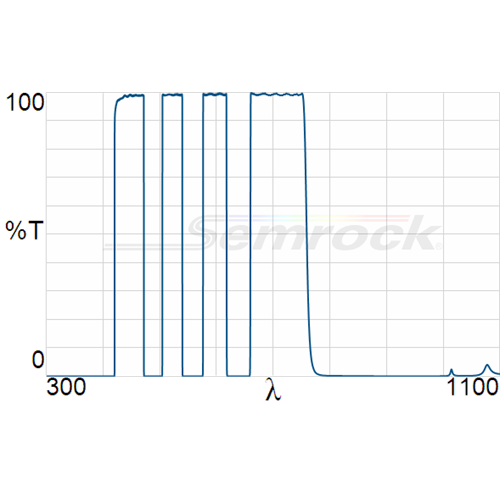

Optical Specifications Value
Transmission Band 1 Tavg > 93% 426 – 470 nm
Transmission Band 2 Tavg > 93% 506.5 – 537 nm
Transmission Band 3 Tavg > 93% 577 – 616 nm
Transmission Band 4 Tavg > 93% 662 – 750 nm
Blocking Band 1   ODavg > 4 200 – 275 nm (Design specification - measurements are noise-floor limited).
Blocking Band 2 ODavg > 4 275 – 370 nm
Blocking Band 3   ODavg > 8 370 – 410 nm (Design specification - measurements are noise-floor limited)
Blocking Band 4 OD > 3.5 417 nm
Blocking Band 5 OD > 3.5 475 nm
Blocking Band 6   ODavg > 8 483 – 493 nm (Design specification - measurements are noise-floor limited)
Blocking Band 7 OD > 3.5 501 nm
Blocking Band 8 OD > 3.5 543 nm
Blocking Band 9   ODavg > 8 550 – 565 nm (Design specification - measurements are noise-floor limited)
Blocking Band 10 OD > 3.5 572 nm
Blocking Band 11 OD > 3.5 622 nm
Blocking Band 12   ODavg > 8 630 – 645 nm (Design specification - measurements are noise-floor limited).
Blocking Band 13 OD > 3.5 654 nm
Blocking Band 14 ODavg > 2 780 – 1000 nm
Blocking Band 15 ODavg > 1 1000 – 1100 nm
Center Wavelength 1 448 nm
Center Wavelength 2 521.7 nm
Center Wavelength 3 596.5 nm
Center Wavelength 4 706 nm
Guaranteed Minimum Bandwidth 1 44 nm
Guaranteed Minimum Bandwidth 2 30.5 nm
Guaranteed Minimum Bandwidth 3 39 nm
Guaranteed Minimum Bandwidth 4 88 nm
General Filter Specifications Value
Angle of Incidence 0 ± 5 degrees
Cone Half-angle 7 degrees
Physical Filter Specifications   Value
Transverse Dimensions (diameter) 25 mm
Transverse Tolerance + 0.0 / – 0.1 mm
Filter Thickness (mounted) 3.5 mm
Filter Thickness Tolerance (mounted) ± 0.1 mm
Clear Aperture ≥ 22 mm
Scratch-Dig 60-40
Filter Thickness (unmounted) 2.0 mm
Filter Thickness Tolerance (unmounted) ± 0.1 mm
Orientation Arrow on ring indicates preferred direction of propagation of light
TopicDescription
Cleaning Optical FiltersInstructions for cleaning hard coated optical filters
Filter ReliabilityCompares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Working with Optical DensityTables to describe the relationship between OD and transmission with tips for quickly calculating OD
Multiband Filter Set TerminologyCompares benefits and drawbacks of full multiband, pinkel and sedat filter sets

Specifications

TopicDescription
Cleaning Optical FiltersInstructions for cleaning hard coated optical filters
Filter ReliabilityCompares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Working with Optical DensityTables to describe the relationship between OD and transmission with tips for quickly calculating OD
Multiband Filter Set TerminologyCompares benefits and drawbacks of full multiband, pinkel and sedat filter sets
