448/20 nm BrightLine^® single-band bandpass filter

Semrock Part Number: FF01-448/20-25

IDEX Part Number: FL-004533 /

Optical Specifications	Value

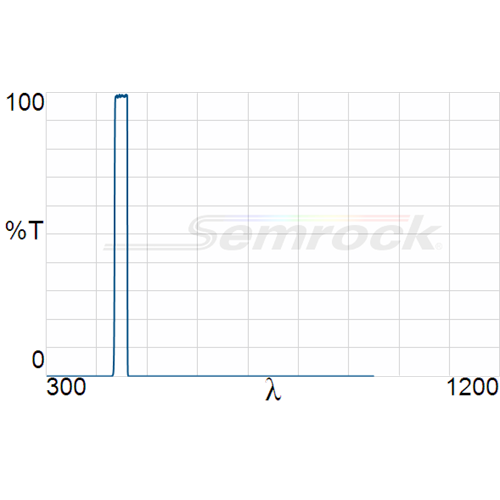

Transmission Band 1	Tavg > 93% 438 – 458 nm
Blocking Band 1	ODavg > 5 200 – 423 nm
Blocking Band 2	ODavg > 3.301 423 – 428 nm
Blocking Band 3	ODavg > 3.301 466 – 471 nm
Blocking Band 4	ODavg > 5 471 – 950 nm
Center Wavelength 1	448 nm
Guaranteed Minimum Bandwidth 1	20 nm
FWHM Bandwidth 1 (nominal)	25 nm
General Filter Specifications	Value
Angle of Incidence	0 ± 5 degrees
Cone Half-angle	7 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Physical Filter Specifications	Value
Transverse Dimensions (diameter)	25 mm
Transverse Tolerance	+ 0.0 / – 0.1 mm
Filter Thickness (mounted)	5.0 mm
Filter Thickness Tolerance (mounted)	± 0.1 mm
Clear Aperture	≥ 21 mm
Scratch-Dig	60-40
Filter Thickness (unmounted)	2.0 mm
Filter Thickness Tolerance (unmounted)	± 0.1 mm
Orientation	Arrow on ring indicates preferred direction of propagation of light
