805/22 nm Nanopede^™ single-band bandpass filter

Semrock Part Number: FBP01-805/22-12.5

IDEX Part Number: FL-436589 /

Optical Specifications	Value

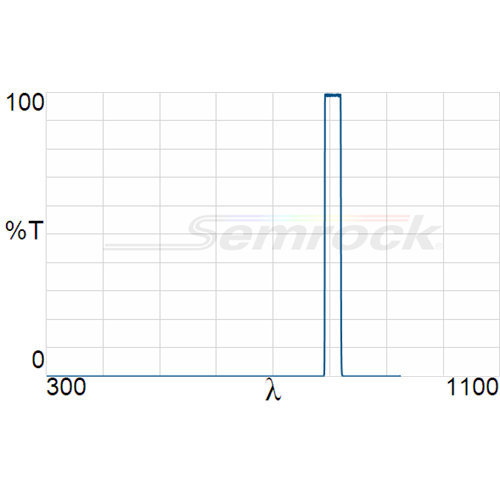

Transmission Band 1	Tavg > 93% 794 – 816 nm
Blocking Band 1	ODavg > 5 330 – 782 nm
Blocking Band 2	OD > 5 405 nm
Blocking Band 3	OD > 5 445 nm
Blocking Band 4	OD > 5 488 nm
Blocking Band 5	OD > 5 532 nm
Blocking Band 6	OD > 5 633 nm
Blocking Band 7	ODavg > 5 829 – 900 nm
Center Wavelength 1	805 nm
Guaranteed Minimum Bandwidth 1	22 nm
FWHM Bandwidth 1 (nominal)	30 nm
General Filter Specifications	Value
Angle of Incidence	0 ± 5 degrees
Cone Half-angle	7 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Physical Filter Specifications	Value
Transverse Dimensions (diameter)	12.5 mm
Transverse Tolerance	+ 0.0 / - 0.1 mm
Filter Thickness (mounted)	3.5 mm
Filter Thickness Tolerance (mounted)	± 0.1 mm
Clear Aperture	≥ 10 mm
Scratch-Dig	80-50
Filter Thickness (unmounted)	2.0 mm
Filter Thickness Tolerance (unmounted)	± 0.1 mm
Exciter/Emitter Orientation	Arrow on ring indicates preferred direction of propagation of light.

Topic	Description
Cleaning Optical Filters	Instructions for cleaning hard coated optical filters
Filter Reliability	Compares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Working with Optical Density	Tables to describe the relationship between OD and transmission with tips for quickly calculating OD

Link	Description
Request a Drawing	Looking for an optical filter drawing file for this product? Request one now!
Request Custom Optical Filters	Contact us today to start a conversation about custom optical filters.
Download Optical Filters 101 Guide	Find an in-depth overview of optical filter principles, specifications, and applications. Request a digital copy of this guide now.
Request Clean Filter Checklist Poster	Looking to clean your optical filters? Need instructions? Request a printed copy of our Clean Filter Checklist Poster.
