765/22 nm Nanopede single-band bandpass filter

Semrock Part Number: FBP01-765/22-12.5

IDEX Part Number: FL-432816  /

Semrock

Individual fluorescence bandpass filters that have been optimized for use in a variety of fluorescence instruments. Pair this filter with other Nanopede filters to step through the spectrum in 20 nm Full-Width, Half Max (FWHM) steps and  the NIR spectrum in 30 nm FWHM steps. This value approach to filter design provides essential filter performance for detector-based applications.

This filter family is designed for scattered light and point detection applications only, for imaging applications, consider our BrightLine filters.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 85.00 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available

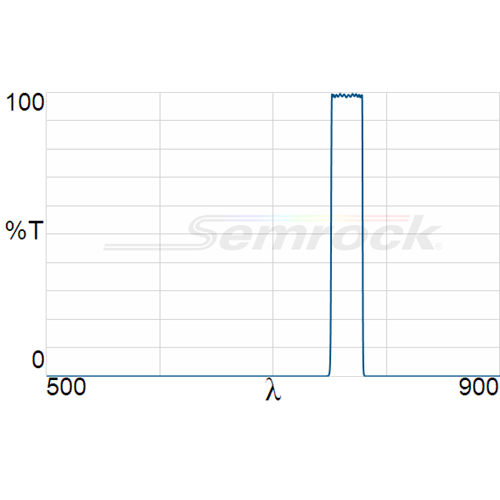

Optical Specifications Value
Transmission Band 1 Tavg > 93% 754 – 776 nm
Blocking Band 1 ODavg > 5 330 – 742 nm
Blocking Band 2 OD > 5 405 nm
Blocking Band 3 OD > 5 445 nm
Blocking Band 4 OD > 5 488 nm
Blocking Band 5 OD > 5 532 nm
Blocking Band 6 OD > 5 633 nm
Blocking Band 7 ODavg > 5 788 – 900 nm
Center Wavelength 1 765 nm
Guaranteed Minimum Bandwidth 1 22 nm
FWHM Bandwidth 1 (nominal) 30 nm
General Filter Specifications Value
Angle of Incidence 0 ± 5 degrees
Cone Half-angle 7 degrees
Optical Damage Rating Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Physical Filter Specifications   Value
Transverse Dimensions (diameter) 12.5 mm
Transverse Tolerance + 0.0 / - 0.1 mm
Filter Thickness (mounted) 3.5 mm
Filter Thickness Tolerance (mounted) ± 0.1 mm
Clear Aperture ≥ 10 mm
Scratch-Dig 80-50
Filter Thickness (unmounted) 2.0 mm
Filter Thickness Tolerance (unmounted) ± 0.1 mm
Orientation Arrow on ring indicates preferred direction of propagation of light.
