640/14 nm Nanopede^™ single-band bandpass filter

Semrock Part Number: FBP01-640/14-12.5

IDEX Part Number: FL-430371 /

Optical Specifications	Value

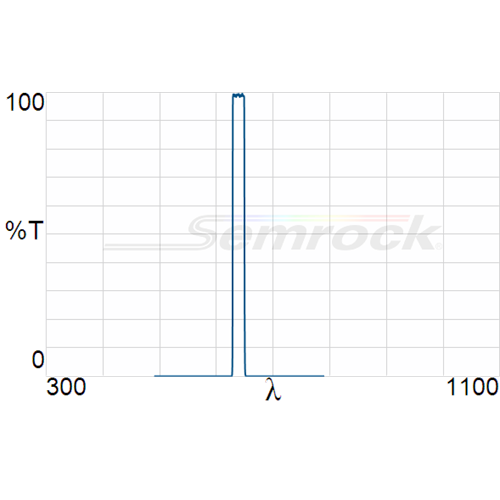

Transmission Band 1	Tavg > 93% 633 – 647 nm
Blocking Band 1	ODavg > 5 330 – 623 nm
Blocking Band 2	OD > 5 405 nm
Blocking Band 3	OD > 5 445 nm
Blocking Band 4	OD > 5 488 nm
Blocking Band 5	OD > 5 532 nm
Blocking Band 6	ODavg > 5 657 – 900 nm
Center Wavelength 1	640 nm
Guaranteed Minimum Bandwidth 1	14 nm
FWHM Bandwidth 1 (nominal)	20 nm
General Filter Specifications	Value
Angle of Incidence	0 ± 5 degrees
Cone Half-angle	7 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hours.
Physical Filter Specifications	Value
Transverse Dimensions (diameter)	12.5 mm
Transverse Tolerance	+ 0.0 / - 0.1 mm
Filter Thickness (mounted)	3.5 mm
Filter Thickness Tolerance (mounted)	± 0.1 mm
Clear Aperture	≥ 10 mm
Scratch-Dig	80-50
Filter Thickness (unmounted)	2.0 mm
Filter Thickness Tolerance (unmounted)	± 0.1 mm
Orientation	Arrow on ring indicates preferred direction of propagation of light
