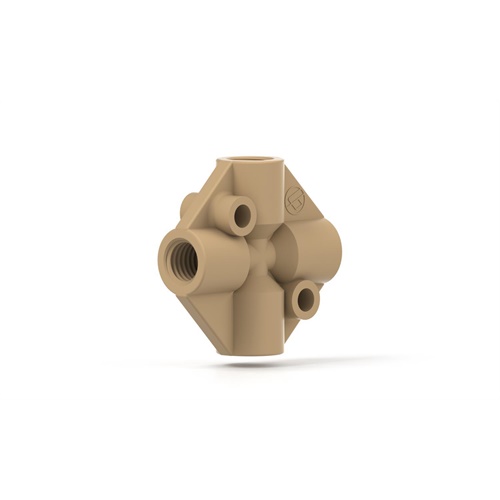

Cross Assembly PEEK .050 Hi Pressure

IDEX Part Number: P-726  /

PEEK High Pressure Cross Assembly is precisely designed to withstand environmental stresses in the high pressure regions of a system. It is made from inert PEEK, which is ideal for chemical resistance. It includes (4) F-301 Fingertight Fittings allowing maximum operating pressure to 3500 psi (241 bar) when used with 1/16OD stainless steel or PEEK tubing.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 95.58 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 3500
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 241
Swept Volume µL 3.53
Thread Port Configuration Coned 1/4-28
Thru hole (in) 0.05
Thru hole (mm) 1.25
