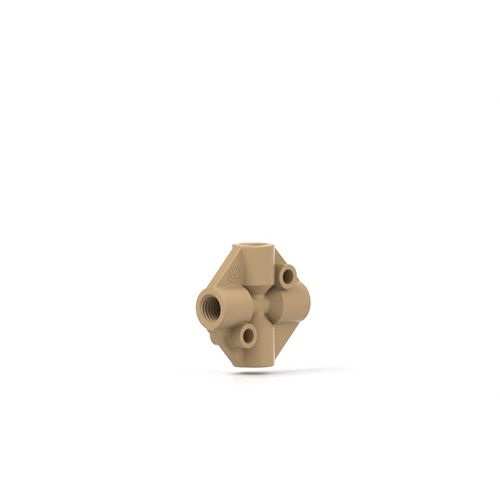

Cross Assembly PEEK .020in thru hole

IDEX Part Number: P-722  /

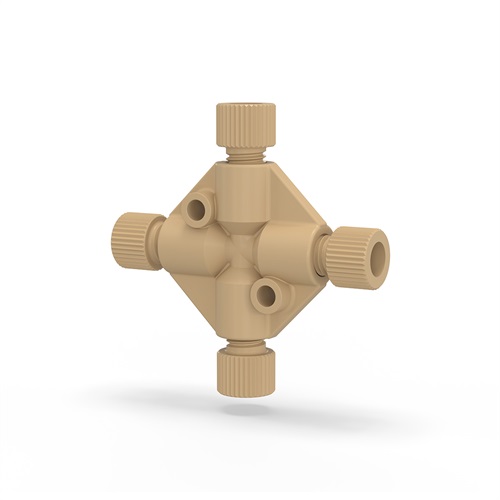

PEEK Low Pressure Cross Assembly is strong and has a durable handling a pressure ratings of 1000 psi (69 bar). It has excellent chemical resistance to commonly used solvents. Our Cross Assembly is equipped with convenient mounting holes. This assembly comes complete with (4) P-235 Nuts.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 52.68 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
For Tubing OD (in) 1/16
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 3.8
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.02
Thru hole (mm) 0.5
Warning for PEEK Fittings
Do not use stainless steel ferrules with this part. The ferrule may crack the fitting rather than crimp down on the tubing. We suggest using only plastic fittings. This will ensure a longer life for this part.
