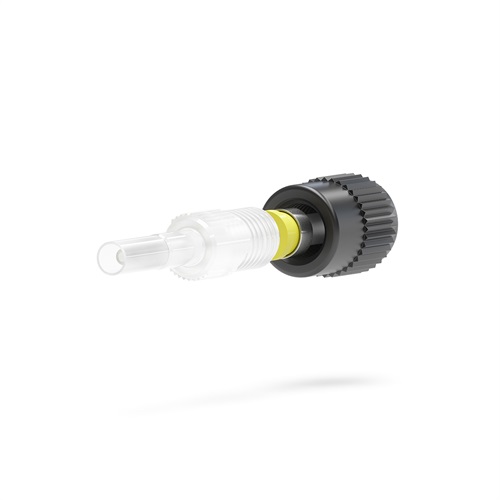

Conical Adapter Assembly, to Connect Rigid-Walled Tubing to Soft-Walled Tubing Connects 1/8" OD Rigid-Walled Tubing to 1/16"-3/32" ID Peristaltic Tubing

IDEX Part Number: P-798  /

Our Conical Adapter Assemblies facilitate the connection of rigid and semi-rigid walled tubing to soft-walled peristaltic tubing with a variety of inner diameters. The unique design of this adapter incorporates a two-stage nose onto which soft-walled tubing can be pressed, and the rigid-walled tubing is connected to the other end of the adapter assembly through the use of the included Super Flangeless™ fittings. Several options exist in this family, facilitating the connection of either 1/16 OD or 1/8 OD rigid and semi-rigid walled tubing and soft-walled tubing with an inner diameter as large as 1/8 (3.2 mm), as indicated.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 18.25 USD Each
  • 0.00
  • Notify me when available
For Peristaltic Tubing ID (in) 0.0625-0.09375
For Peristaltic Tubing ID (mm) 1.55-2.40
For Rigid or Semi-Rigid Tubing OD (in) 1/8
Primary Material of Construction PEEK
Thru hole (in) 0.04
Thru hole (mm) 1
