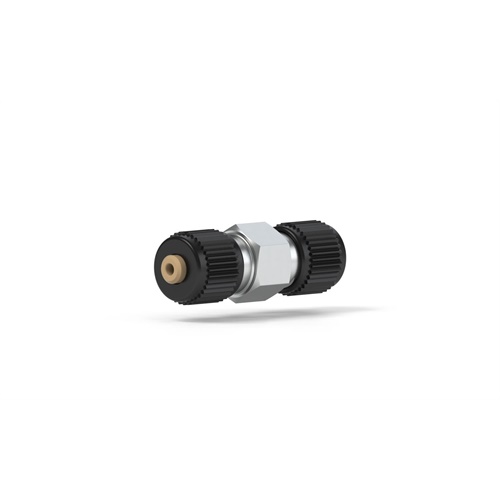

Conductive Micro Union Assembly

IDEX Part Number: M-572  /

Our Conductive MicroTight Union Assembly provides an excellent way to introduce voltage into an electrospray or capillary electrophoresis system. It is for 360µm OD Tubing. This assembly comes with (2) F-152, (2) P-416BLK and (1) 128NF.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 114.48 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 5000
For Tubing OD (µm) 360
Pressure Rating Max (bar) 345
Swept Volume nL 16
Thread Port Configuration Coned 5/16-24
Thru hole (in) 0.011
Thru hole (mm) 0.28

Specifications
