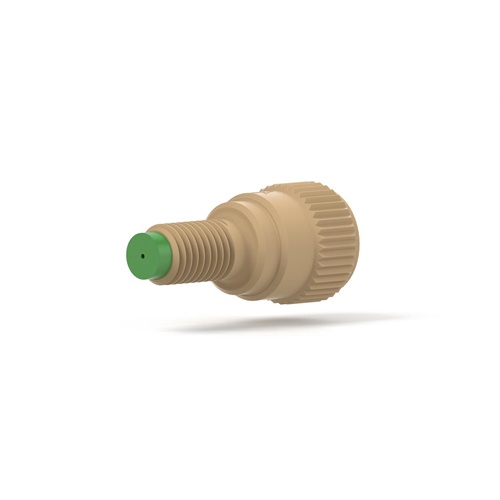

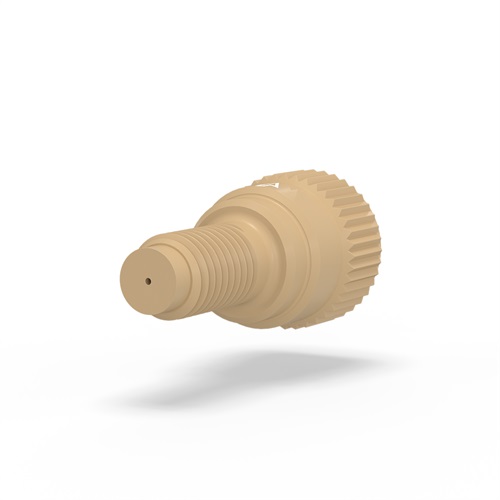

Check Valve Outlet 3 psi 1/4-28 .020 thru hole

IDEX Part Number: CV-3316  /

Our standard Outlet Check Valve adds back-flow protection to any 1/4-28 flat-bottom port. Made from PEEK, PCTFE, perfluoroelastomer, PTFE and stainless steel it offers excellent chemical resistance. It's spring actuated sealing system eliminates back-flow, helping prevents upstream contamination or damage. It has a cracking pressure of 3psi and a 1/4-28 Flat-Bottom Male to 1/4-28 Flat-Bottom Female thread port configuration.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 149.94 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 2000
Cracking Pressure (bar) 0.2
Cracking Pressure (psi) 3
Material PEEK
Pressure Rating Max (bar) 138
Swept Volume µL 16
Thread Port Configuration Flat-Bottom 1/4-28
Topic Description
Standard 1/4-28 Inline Check Valve Instruction Guide Learn how to install the 1/4-28 inline check valve by IDEX Health & Science into your fluidic system.
