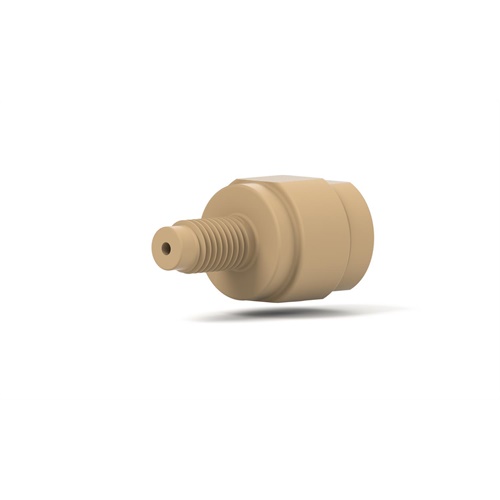

Check Valve Inlet Non-Metallic.060 thru hole

IDEX Part Number: CV-3324  /

Our Non-Metallic Inlet Check Valve is biocompatible and delivers a low cracking pressure. It is made from PEEK and Perfluoroelastomer giving it excellent chemical resistance. Metal free composition makes this check valve perfect for use with corrosive fluids and biological samples. It has a female to male 1/4-28 thread port configuration and a .060 thru hole.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 137.65 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 2000
Cracking Pressure (bar) 0.07
Cracking Pressure (psi) 1
Pressure Rating Max (bar) 138
Swept Volume µL 182
Thread Port Configuration Flat-Bottom 1/4-28
TopicDescription
Non-Metallic 1/4-28 Inline Check Valves Instruction GuideLearn how to install non-metallic 1/4-28 check valves into your fluidic system
