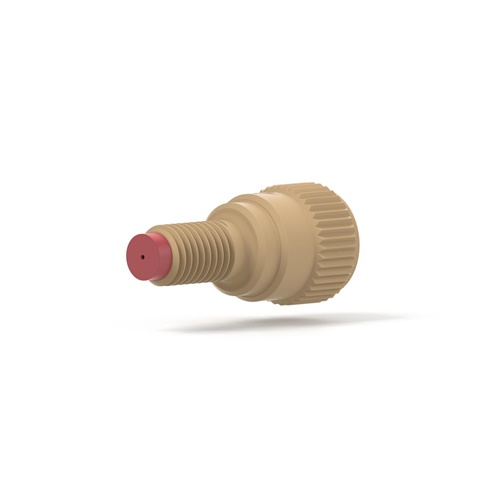

Check Valve Inlet Assembly 3 psi 1/4-28 .020

IDEX Part Number: CV-3315  /

Our standard Inlet Check Valve adds back-flow protection to any 1/4-28 flat-bottom port. Made from PEEK, PCTFE, perfluoroelastomer, PTFE and stainless steel it offers excellent chemical resistance. It's spring actuated sealing system eliminates back-flow, helping prevents upstream contamination or damage. It has a cracking pressure of 3psi and 1/4-28 Flat-Bottom Male to 1/4-28 Flat-Bottom Female thread port configuration.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 141.35 USD Each
  • 0.00
  • Notify me when available
Pressure Rating Max (psi) 2000
Cracking Pressure (bar) 0.2
Cracking Pressure (psi) 3
Material PEEK
Pressure Rating Max (bar) 138
Swept Volume µL 16
Thread Port Configuration Flat-Bottom 1/4-28
