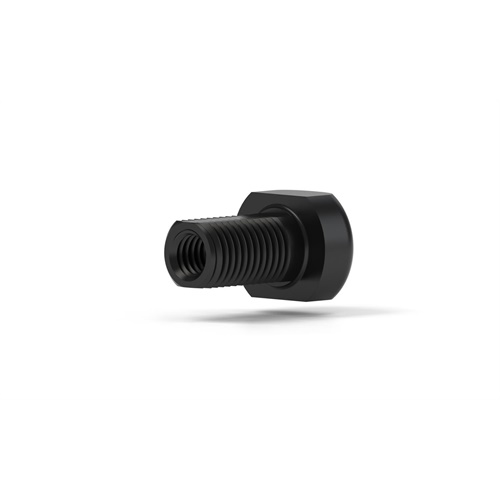

Bulkhead Union Assembly PEEK M6

IDEX Part Number: P-442  /

Our PEEK Bulkhead Union is specifically designed to be thread directly through equipment housing to connect internal tubing to the outside. It is manufactured from biocompatible PEEK giving is excellent chemical resistance to virtually all commonly used solvents. It has an internal thread of M6 and it includes a stainless steel nut/lock washer. It comes in black.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 0.00 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Color Black
Material PEEK
Thread Port Configuration Flat-Bottom M6
Thru hole (in) 0.04
Thru hole (mm) 1
Topic Description
Bulkhead Unions / Manifold Instruction Guide Find instructions on what size thru-hole to drill into a bulkhead to mount the union / manifold body

Specifications

Topic Description
Bulkhead Unions / Manifold Instruction Guide Find instructions on what size thru-hole to drill into a bulkhead to mount the union / manifold body
