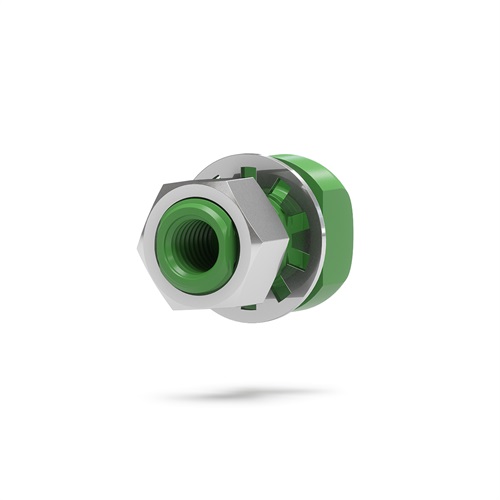

Bulkhead Union Assembly PEEK 1/4-28 Green

IDEX Part Number: P-441G  /

Our PEEK Bulkhead Union is optimally designed to be thread directly through equipment housing to connect internal tubing to the outside. It is manufactured from biocompatible PEEK giving is excellent chemical resistance to virtually all commonly used solvents. It has an internal thread of 14-28. The Bulkhead Union includes a stainless steel nut/lock washer. It comes in Red, blue, black, green and natural.

Looking for a CAD file for this product? Request a CAD now!

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 20.50 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Color Green
Material PEEK
Swept Volume µL 2.9
Thread Port Configuration Flat-Bottom 1/4-28
Thru hole (in) 0.04
Thru hole (mm) 1
Topic Description
Bulkhead Unions / Manifold Instruction Guide Find instructions on what size thru-hole to drill into a bulkhead to mount the union / manifold body
