This filter set is designed for use with Yellow Fluorescent Protein (YFP) and Venus and ATTO 488, ATTO 514, ATTO 520 and works well with other key fluorophores. The Avant™ filter set family delivers significant increases in fluorescence performance for small Stokes Shift fluorophores compared to standard filter sets. Steep spectral edges and high complementary OD blocking maximize signal while maintaining low bleedthrough and high signal to noise ratio. The new Precise Edge Placement capability ensures every filter set delivers consistent performance.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
1,116.05 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
We now offer LFOV (large field of view) cube sets compatible with Nikon Eclipse Ti2 microscopes. Please contact us for more information.
Set Components
AF01-504/24-25FL-429408
Each

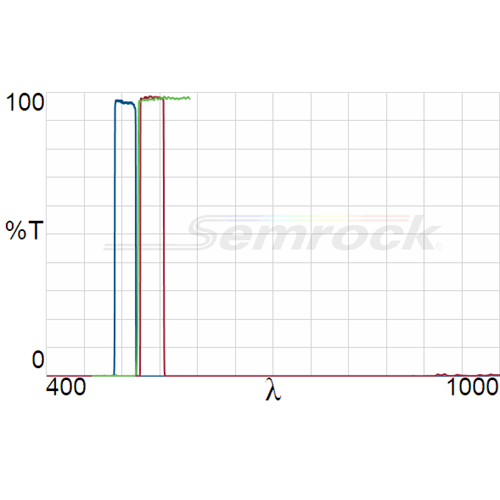

• Tavg > 93% 492.5 – 516.5 nm
• Center Wavelength of 504 nm and GMBW of 24 nm • FWHM of 28 nm |
FL-429408 |
|
AF01-539/27-25FL-426382
Each
• Tavg > 93% 525.5 – 552.5 nm
• Center Wavelength of 539 nm and GMBW of 27 nm • FWHM of 31 nm |
FL-426382 |
|
AF521-Di01-25x36FL-429409
Each
Custom sizing delivery confirmed ARO (sizing fee applies). |
FL-429409 |
total selected
Clear selection
Select all 10 products from all pages.
Avant-YFP-NTE
S-431319 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores
Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-NQF
S-431320 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores
Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-ZHE
S-431321 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores
Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-OMF
S-431322 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores
Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-OFF
S-431323 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores
Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-ZHE-ZERO
S-434100 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores. Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-NTE-ZERO
S-434156 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores. Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-OMF-ZERO
S-434157 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores. Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-NQF-ZERO
S-434658 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores. Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
Avant-YFP-OFF-ZERO
S-434659 / 0
Avant™ single-band filter set, optimized for Yellow Fluorescent Protein (YFP) and Venus and other like fluorophores. Best high-performance set for high-end applications. Ideal for use with: Yellow Fluorescent Protein (YFP) and Venus.
1 of 1
| Topic | Description |
| Cleaning Optical Filters | Instructions for cleaning hard coated optical filters |
| Filter Reliability | Compares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters |
| Working with Optical Density | Tables to describe the relationship between OD and transmission with tips for quickly calculating OD |
| What is Pixel Shift, and how does the Semrock ZERO™ option help? | Why Pixel Shift degrades multicolor fluorescence imaging performance, and how the ZERO™ option mitigates this for Avant and BrightLine filter sets. |
Optimized – Filter set is specifically optimized for that fluorophore.
Compatible – Should result in nearly ideal performance in most situations.
Acceptable – Actual performance is dependent on specific experimental conditions.
| Fluorophore | Peak Excitation Wavelength(nm) | Peak Emission Wavelength(nm) | Compatibility | Display on Plot above |
|---|---|---|---|---|
| ATTO 488 | 500 | 525 |
|
|
| ATTO 520 | 516 | 538 |
|
|
| Venus | 516 | 528 |
|
|
| YFP (yellow GFP) | 513 | 530 |
|
