Avant™ single-band filter set, optimized for mCherry and other like fluorophores

Semrock Part Number: Avant-mCherry-000

IDEX Part Number: S-438541  /

Semrock


This filter set is designed for use with mCherry and works well with other like fluorophores. The Avant™ filter set family delivers significant increases in fluorescence performance for small Stokes Shift fluorophores compared to standard filter sets. Steep spectral edges and high complementary OD blocking maximize signal while maintaining low bleedthrough and high signal to noise ratio. The new Precise Edge Placement capability ensures every filter set delivers consistent performance.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 1,116.05 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
We now offer LFOV (large field of view) cube sets compatible with Nikon Eclipse Ti2 microscopes. Please contact us for more information.
Add to List Add to List

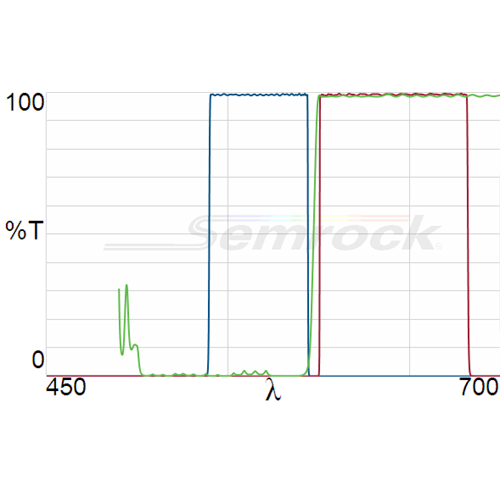

Set Components

AF01-567/50-25

FL-438532

Each
• Tavg > 93% 542 – 592 nm
• Center Wavelength of 567 nm and GMBW of 50 nm
• FWHM of 51 nm

FL-438532

AF01-641/77-25

FL-438533

Each
• Tavg > 93% 602 – 679 nm
• Center Wavelength of 641 nm and GMBW of 77 nm
• FWHM of 81 nm

FL-438533

AF597-Di01-25x36

FL-438534

Each
  • Dichroic Beamsplitter with edge at 597 nm
  • Ravg > 98% 510 – 592 nm
  • Tavg > 93% 602 – 720 nm
  •  Flatness / RWE: Standard Epi-fluorescence

Custom sizing delivery confirmed ARO (sizing fee applies).

FL-438534

Optical Specifications Value
Blocking Avant filters have blocking far exceeding OD 5 as needed to ensure a black background, even when using modern low-noise CCD cameras. The blocking is optimized for microscopy applications using our exclusive SpecMaker™ fluorescence filter design.
General Filter Specifications Value
Optical Damage Rating Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Microscope Compatibility Avant filters are available to fit Leica, Nikon, Olympus, Zeiss, and Aperio microscopes.
Physical Filter Specifications   Value
Exciter/Emitter Orientation Arrow on ring indicates preferred direction of propagation of light.
Dichroic Orientation Reflective surface marked with part number - Orient in direction of incoming light

Avant-mCherry-NQF

S-439066 / 0

Out of Stock Backordered In Stock
Avant™ single-band filter set, optimized for m-Cherry and other like fluorophores. High-performance filter set for high-end applications. Ideal for use with: mCherry, and other like fluorophores
Compare Compare
More Info
Compare Compare

Avant-mCherry-NTE

S-439096 / 0

Out of Stock Backordered In Stock
Avant™ single-band filter set, optimized for m-Cherry and other like fluorophores. High-performance filter set for high-end applications. Ideal for use with: mCherry, and other like fluorophores
Compare Compare
More Info
Compare Compare
Hide Show
{{compareProduct.AlternativeText}}
{{compareProduct.AlternativeText}}

/

1 of 1
TopicDescription
Cleaning Optical FiltersInstructions for cleaning hard coated optical filters
Filter ReliabilityCompares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Working with Optical Density Tables to describe the relationship between OD and transmission with tips for quickly calculating OD
What is Pixel Shift, and how does the Semrock ZERO™ option help? Why Pixel Shift degrades multicolor fluorescence imaging performance, and how the ZERO™ option mitigates this for Avant and BrightLine filter sets.
Optimized – Filter set is specifically optimized for that fluorophore.
Compatible – Should result in nearly ideal performance in most situations.
Acceptable – Actual performance is dependent on specific experimental conditions.
Fluorophore Peak Excitation Wavelength(nm) Peak Emission Wavelength(nm) Compatibility Display on Plot above
mCherry 587 610
