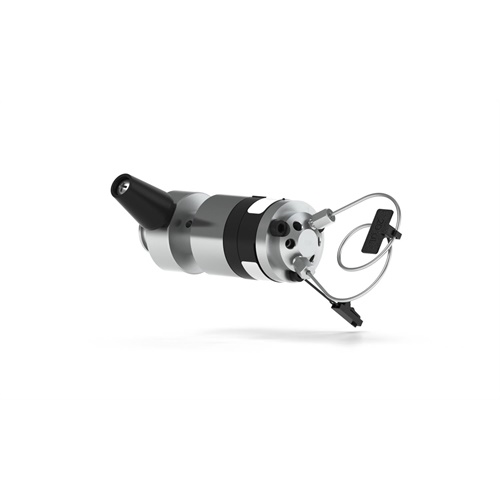

Analytical Front Loading Injection Valve

IDEX Part Number: 7725I  /

Our Front Loading Injection Valve is designed with our unique MBB “Make-Before-Break” architecture. The valve includes a position sensing switch. Sample is loaded through the front of the valve using a syringe. A 20 µL sample loop is connected between ports 1 and 4. It is made from durable Stainless Steel. It has 2-positions and 6-port.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 1,400.84 USD Each
  • 0.00
    0.00
  • Notify me when available
Ports 6
Pressure Rating Max (psi) 5000
For Tubing OD (in) 1/16
Material Stainless Steel
Positions 2
Pressure Rating Max (bar) 345
Thread Port Configuration Coned 10-32

Specifications
