683 nm Avant™ Dichroic Beamsplitter

Semrock Part Number: AF683-Di01-25x36

IDEX Part Number: FL-426308  /

Semrock

For optimal filter set performance, pair this dichroic with AF01-653/47 and AF01-712/48, which have been optimized for Cy5.5™, Alexa Fluor 680, ATTO 665 and other key fluorophores. Precise edge placement of the steep transition edge combined with very high reflection and transmission bands maximize fluorophore performance compared to standard dichroics.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 319.73 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Add to List Add to List

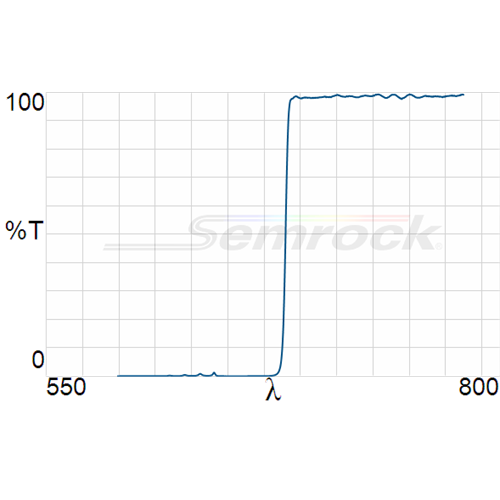

Optical Specifications Value
Transmission Band 1 Tavg > 93% 688 – 770 nm
Reflection Band 1 Ravg > 98% 600 – 677 nm
Edge Wavelength 1 683 nm
Flatness Standard Epi-Fluorescence
General Filter Specifications Value
Angle of Incidence 45 ± 1.5 degrees
Cone Half-angle 2 degrees
Optical Damage Rating Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Flatness / RWE Classification   Standard Epi-fluorescence
Physical Filter Specifications   Value
Transverse Dimensions (L x W) 25.2 mm x 35.6 mm
Transverse Tolerance ± 0.1 mm
Clear Aperture ≥ 80% (elliptical)
Scratch-Dig 60-40
Filter Thickness (unmounted) 1.05 mm
Filter Thickness Tolerance (unmounted) ± 0.05 mm
Orientation Reflective surface marked with part number - Orient in direction of incoming light
