659 nm Avant^™ Dichroic Beamsplitter

Semrock Part Number: AF659-Di01-25x36

IDEX Part Number: FL-433901 /

Optical Specifications	Value

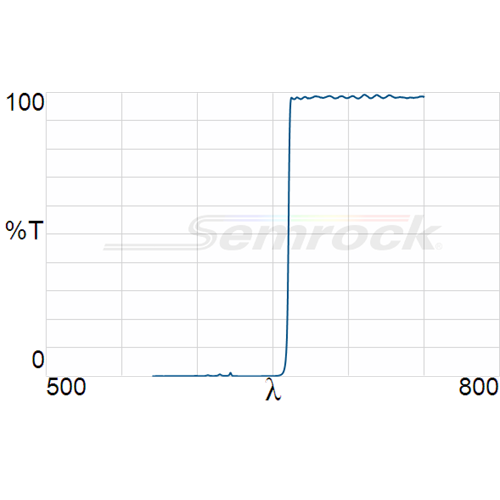

Transmission Band 1	Tavg > 93% 664 – 740 nm
Reflection Band 1	Ravg > 98% 580 – 653 nm
Edge Wavelength 1	659 nm
General Filter Specifications	Value
Angle of Incidence	45 ± 1.5 degrees
Cone Half-angle	2 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Flatness / RWE Classification	Standard Epi-fluorescence
Physical Filter Specifications	Value
Transverse Dimensions (L x W)	25.2 mm x 35.6 mm
Transverse Tolerance	± 0.1 mm
Clear Aperture	≥ 80% (elliptical)
Scratch-Dig	60-40
Filter Thickness (unmounted)	1.05 mm
Filter Thickness Tolerance (unmounted)	± 0.05 mm
Orientation	Reflective surface marked with part number - Orient in direction of incoming light
