604 nm Avant^™ Dichroic Beamsplitter

Semrock Part Number: AF604-Di01-25x36

IDEX Part Number: FL-429647 /

Optical Specifications	Value

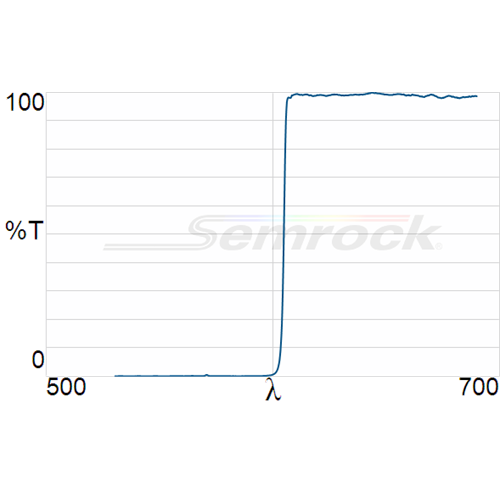

Transmission Band 1	Tavg > 93% 609 – 680 nm
Reflection Band 1	Ravg > 98% 540 – 599 nm
Edge Wavelength 1	604 nm
General Filter Specifications	Value
Angle of Incidence	45 ± 1.5 degrees
Cone Half-angle	2 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Flatness / RWE Classification	Standard Epi-fluorescence
Physical Filter Specifications	Value
Transverse Dimensions (L x W)	25.2 mm x 35.6 mm
Transverse Tolerance	± 0.1 mm
Clear Aperture	≥ 80% (elliptical)
Scratch-Dig	60-40
Filter Thickness (unmounted)	1.05 mm
Filter Thickness Tolerance (unmounted)	± 0.05 mm
Orientation	Reflective surface marked with part number - Orient in direction of incoming light

Topic	Description
Cleaning Optical Filters	Instructions for cleaning hard coated optical filters
Filter Reliability	Compares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Flatness of Dichroic Beamsplitters	Describes the impact of non-flat dichroic beamsplitters on microscope image fidelity
Laser Damage Threshold	Provides information for calculating laser damage threshold for pulsed and continuous wave lasers

White Paper

Topic	Description
Flatness of Dichroic Beamsplitters Affects Focus and Image Quality	Analysis of how the radius of curvature of a dichroic filter affects focal plane shift, spot size and image fidelity in fluorescence microscopy.
