585/29 Avant™ Bandpass Filter

Semrock Part Number: AF01-585/29-25

IDEX Part Number: FL-429643  /

Semrock
For optimal filter set performance, pair this exciter with AF01-626/35 and AF604-Di01, which have been optimized for Texas Red, Alexa Fluor 594, ATTO 590 and other key fluorophores when used as a filter set. Precise edge placement of the steep spectral edges combined with deep complementary blocking maximize fluorophore performance compared to standard exciter and emitter pairs.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 400.93 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Add to List Add to List

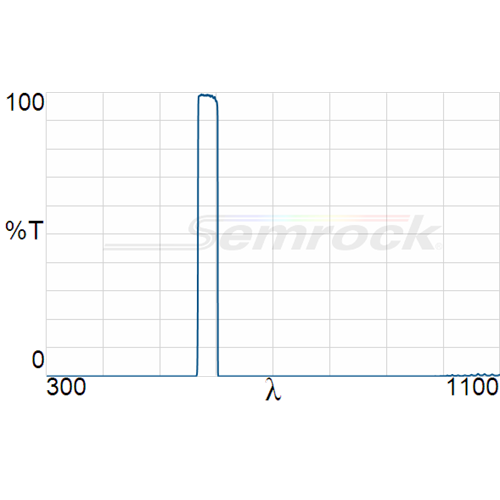

Optical Specifications Value
Transmission Band 1 Tavg > 93% 570 ­- 599 nm
Blocking Band 2 ODavg > 5 275 – 340 nm
Blocking Band 5   ODavg > 10 609 -­ 659 nm (Design specification - measurements are noise-floor limited)
Blocking Band 6 ODavg > 6 659 – 850 nm
Center Wavelength 1 585 nm
General Filter Specifications Value
Angle of Incidence 0 ± 5 degrees
Physical Filter Specifications   Value
Transverse Dimensions (diameter) 25 mm
Transverse Tolerance + 0.0 / – 0.1 mm
Filter Thickness (mounted) 5 mm
Filter Thickness Tolerance (mounted) ± 0.1 mm
Clear Aperture ≥ 21 mm
Scratch-Dig 60-40
Filter Thickness (unmounted) 2.0 mm
Filter Thickness Tolerance (unmounted) ± 0.1 mm
TopicDescription
Cleaning Optical FiltersInstructions for cleaning hard coated optical filters
Filter ReliabilityCompares the performance and reliability of hard coated filters to traditional soft-coated filters and provides information about the testing standards for Semrock filters
Working with Optical Density Tables to describe the relationship between OD and transmission with tips for quickly calculating OD
LinkDescription
Request a DrawingLooking for an optical filter drawing file for this product? Request one now!
Request Custom Optical FiltersContact us today to start a conversation about custom optical filters.
Access Optical Filter WarrantyFind our warranty in our Terms & Conditions of Sale.
Semrock Optical Filters RoHS CertificateRoHS, stands for Restriction of Hazardous Substances. The current RoHS Directive currently restricts the use of ten substances.
Semrock Optical Filters REACH CertificateREACH is a regulation of the European Union, adopted to improve the protection of human health and the environment from the risks that can be posed by chemicals, while enhancing the competitiveness of the EU chemicals industry.
Download Optical Filters 101 GuideFind an in-depth overview of optical filter principles, specifications, and applications. Request a digital copy of this guide now.
Request Clean Filter Checklist PosterLooking to clean your optical filters? Need instructions? Request a printed copy of our Clean Filter Checklist Poster.
