567/50 Avant^™ Bandpass Filter

Semrock Part Number: AF01-567/50-25

IDEX Part Number: FL-438532 /

Optical Specifications	Value

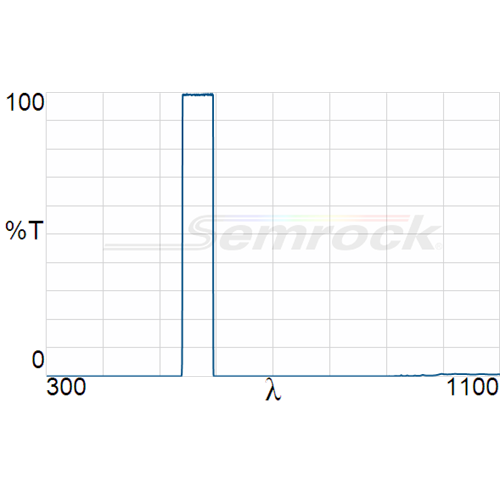

Transmission Band 1	Tavg > 93% 542 – 592 nm
Blocking Band 1	ODavg > 5 200 – 275 nm (Design specification - measurements are noise-floor limited).
Blocking Band 2	ODavg > 5 275 – 340 nm
Blocking Band 3	ODavg > 6 340 – 530 nm
Blocking Band 4	OD > 3.5 597 nm
Blocking Band 5	ODavg > 10 602 – 694 nm (Design specification - measurements are noise-floor limited)
Blocking Band 6	ODavg > 6 694 – 850 nm
Blocking Band 7	ODavg > 2 850 – 1100 nm
Center Wavelength 1	567 nm
Guaranteed Minimum Bandwidth 1	50 nm
FWHM Bandwidth 1 (nominal)	54.4 nm
General Filter Specifications	Value
Angle of Incidence	0 ± 5 degrees
Cone Half-angle	7 degrees
Optical Damage Rating	Testing has proven to show no signs of degradation when exposed to at least 6.0 W of power from an unfiltered xenon arc lamp over a 25 mm diameter (corresponding to 1.2 W/cm2) for over 500 hrs.
Physical Filter Specifications	Value
Transverse Dimensions (diameter)	25 mm
Transverse Tolerance	+ 0.0 / – 0.1 mm
Filter Thickness (Mounted)	5.0 mm
Filter Thickness Tolerance (mounted)	± 0.1 mm
Clear Aperture	≥ 21 mm
Scratch-Dig	60-40
Filter Thickness (unmounted)	2.0 mm
Filter Thickness Tolerance (unmounted)	± 0.1 mm
Exciter/Emitter Orientation	Arrow on ring indicates preferred direction of propagation of light.
