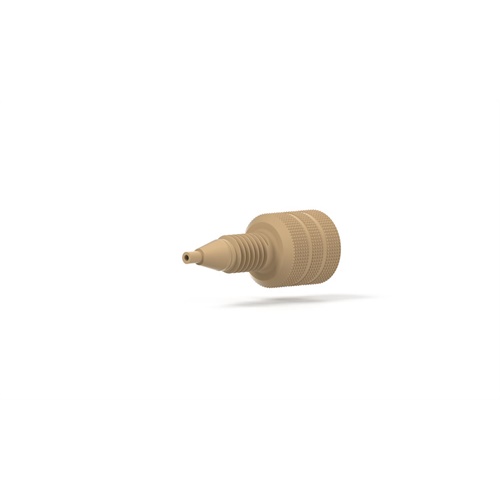

Adapter - M6 x 10-32 Standard, PEEK

IDEX Part Number: P-650  /

Our PEEK, Standard, Metric Threaded Adapter is ideal for bringing together connectors with different threads. The P-650 has a Female M6 Flat Bottom to Male 10-32 Coned port configuration. It includes no fittings.
  • Price Not Available.
  • Each
  • Price Not Available.
  • 19.07 USD Each
  • 0.00
    0.00
  • Notify me when available
Pressure Rating Max (psi) 1000
Material PEEK
Pressure Rating Max (bar) 69
Swept Volume µL 6.7
Thread Port Configuration Coned M6 to 10-32
Thread to Thread Female to Male
Thru hole (in) 0.03
Thru hole (mm) 0.75

Specifications
