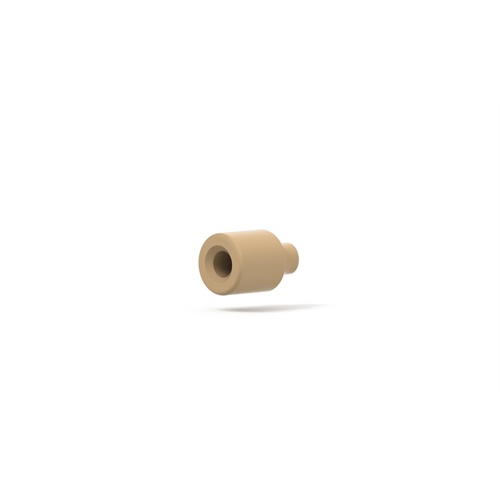

Adapter Body PEEK Bottle Cap, 6-32 Port

IDEX Part Number: P-600  /

Call 1-800-426-0191 for more information on how to purchase this product.

PEEK Bottle Cap Adapter offers a design that allow you to just insert it into a tubing cap hole then connect to the tubing. The P-600 has a 6-32 port configuration. It is used with our F-126 or F-126H fittings. natural color PEEK Bottle Cap Adapter is for use with 1/32OD Tubing.

Looking for a CAD file for this product? Request a CAD now!

Color Natural
For Tubing OD (in) 1/32
Material PEEK
Thread Port Configuration Flat-Bottom 6-32
Thru hole (in) 0.125
Thru hole (mm) 3.17

Specifications
