Reagent Selection Valve, 8 Position / 9 Port

IDEX Part Number: MHP7790-002-3 /

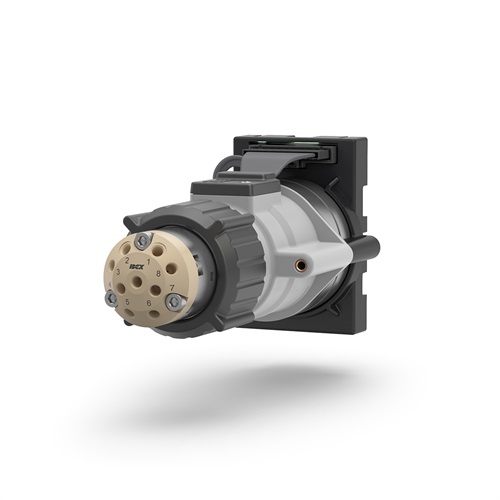

MHP7790-002-3 facing front

MHP7790-002-3 facing front

MHP7790-002-3 facing right

MHP7790-002-3 back side

Specifications
Valve Resources

Material	PEEK/RPC-7
Ports	9
Positions	8
Valve Type	Low Pressure, Selector
Valve Family	TitanHP
Pressure Rating Max (psi)	50
Pressure Rating Max (bar)	3.5
Control Logic	UART, I2C, RS-232

Valve Design and System Integration Resources

Topic	Description
Valve Solutions Guide	Whether your application demands salt solutions, fast cycle times, or zero carryover, IDEX Health & Science has a proven valve solution, tested to millions of cycles, ensuring maximum system uptime.
Understanding and Testing Fluid Flow for Custom Valve Design White Paper	There are many factors taken into consideration during the development of a valve design. Prototyping the complex geometries of valve stators can be expensive and time-consuming but with the use of simulation tools, we can iterate multiple designs quickly and select the most desirable solutions before the first parts are manufactured. Learn more.
Integrated Fluidic Subsystems Brochure	Direct fluid across many applications with manifold mounted or stand alone rotary shear valves with extremely tight tolerances. Integrated fluidic subsystems from IDEX Health & Science deliver exceptional instrument performance. Our proven design expertise enables instrument developers to reduce the fluidic complexity of their system.
Chemical Compatibility Guide	This Chemical Compatibility guide will allow you to either check what materials will work with the chemicals you are using or planning to use; or view what compatibility ratings are given to a material you are planning to use.

Related Applications

Topic	Description
Next Generation Sequencing	Precise, repeated cycling of reagents can be a challenge for conventional fluid handling instruments. Partnering with IDEX Health & Science on the development of your next-generation sequencing (NGS) platform ensures you have a reliable custom solution that delivers accurate reagent flow with consistent valve timing.
Spatial Transcriptomics	Whether you are targeting protein, RNA, or DNA, your spatial transcriptomics instrument should offer a rapid, reliable, unbiased view of the molecular content. Partnering with IDEX Health & Science on the design of your platform unlocks the fluidic tools you need to develop your transformational spatial omics platform.

Material: PEEK/RPC-7
Ports: 9
Positions: 8
Valve Type: Low Pressure, Selector
Valve Family: TitanHP
Pressure Rating Max (psi): 50
Pressure Rating Max (bar): 3.5
Control Logic: UART, I2C, RS-232

Valve Design and System Integration Resources

Topic	Description
Valve Solutions Guide	Whether your application demands salt solutions, fast cycle times, or zero carryover, IDEX Health & Science has a proven valve solution, tested to millions of cycles, ensuring maximum system uptime.
Understanding and Testing Fluid Flow for Custom Valve Design White Paper	There are many factors taken into consideration during the development of a valve design. Prototyping the complex geometries of valve stators can be expensive and time-consuming but with the use of simulation tools, we can iterate multiple designs quickly and select the most desirable solutions before the first parts are manufactured. Learn more.
Integrated Fluidic Subsystems Brochure	Direct fluid across many applications with manifold mounted or stand alone rotary shear valves with extremely tight tolerances. Integrated fluidic subsystems from IDEX Health & Science deliver exceptional instrument performance. Our proven design expertise enables instrument developers to reduce the fluidic complexity of their system.
Chemical Compatibility Guide	This Chemical Compatibility guide will allow you to either check what materials will work with the chemicals you are using or planning to use; or view what compatibility ratings are given to a material you are planning to use.

Related Applications

Topic	Description
Next Generation Sequencing	Precise, repeated cycling of reagents can be a challenge for conventional fluid handling instruments. Partnering with IDEX Health & Science on the development of your next-generation sequencing (NGS) platform ensures you have a reliable custom solution that delivers accurate reagent flow with consistent valve timing.
Spatial Transcriptomics	Whether you are targeting protein, RNA, or DNA, your spatial transcriptomics instrument should offer a rapid, reliable, unbiased view of the molecular content. Partnering with IDEX Health & Science on the design of your platform unlocks the fluidic tools you need to develop your transformational spatial omics platform.
