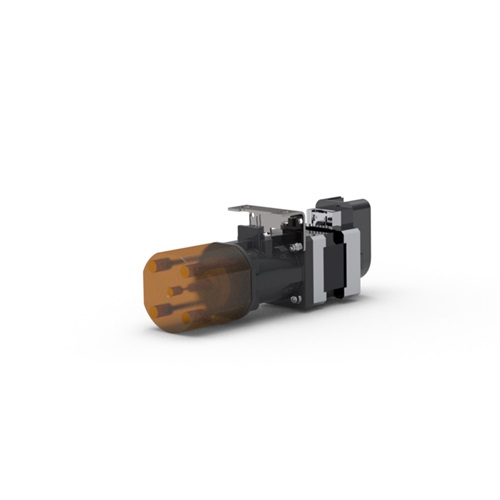

VFP17 100µL Pump (Ultem Head)

IDEX Part Number: VFP-1000UL1S-20C1XXD  /

Looking to design this product into your instrument? Call 1-800-426-0191 for more information on how to purchase this product.

The VFP17 pump allows for custom mounted valving and includes various materials to ensure chemical compatibility. Each VFP17 pump is machined to incorporate a fluidic path that minimizes unwept volume and assembled with a drivetrain that is designed to last 5 million cycles. Whether used as a single pump, or combined with multiple units in a fluidic manifold, the VFP17 has proven to be a flexible and maintenance-free solution for OEM instrument designers.



Looking for a CAD file for this product? Request a CAD now!



Pump Volume (µL) 1000
Recommended Max Pump Operating Pressure 160 psi (Max pressure achieved at <35% max speed based on half coil chopper drive operation at 24V)
Pump Max Dispense Rate (mL/min) 60 mL/min (Max speed achieved at <35% max pressure based on half coil chopper driver operation at 24V)
Pump Precision 20µL < 1%
Pump Wetted Materials ULTEM, UHMW, Viton, Zirconia
Pump Fluidic Ports Two 1/4-28 UNF
Home Position Dispense
Pump Resolution (Full Step) 2000
Anticipated Life 5 million cycles
