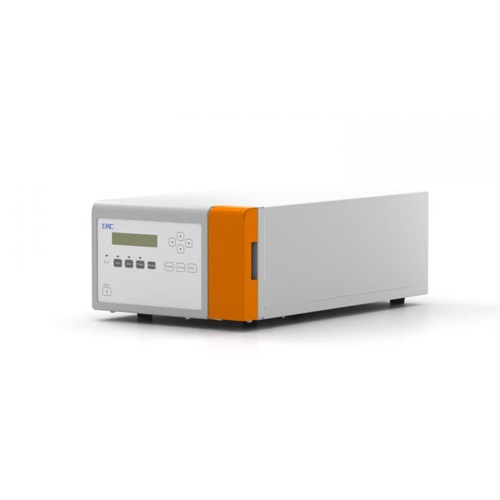

IDEX RefractoMax522 RI Detector Semi Prep

IDEX Part Number: 100001334001  /

Call 1-800-426-0191 for more information on how to purchase this product.

Our RefractoMax RI Detector provides accurate Refractive index detection with sharp peeks and consistent performance. It is available in three flow rate options.

Looking for a CAD file for this product? Request a CAD now!

Global and domestic verified OEM partners may be eligible to receive discounted pricing. Please reach out through this form to see if you qualify.

Length (in) 17.8
Recommended Flow Rate (ml/min) 1-50
Back Pressure (kpa) 50
Temperature Control C 30-55
Measuring range (uRIU): 2.5-5120
Linearity Range uRIU 6000
Refractive Index Range 1.0-1.75
Sensitivity (Integrator Output) DC 0 to 1 V (0.2 mV/μRIU, 0.8 mV/μRIU)
Flow Cell Volume (uL) 8
Wetted Materials SUS316, Teflon™, Quartz glass
Width (in) 9.5
Height (in) 5.9

Specifications
