IDEX Part Number: VP17  /

Call 1-800-426-0191 for more information on how to purchase this product.

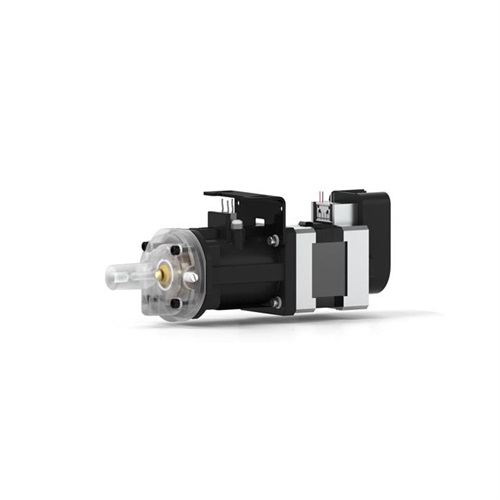

Our VP17 Dispense Pump delivers precise fluidic dispensing for a variety of lower pressure clinical and laboratory instruments. It's streamlined design offers flexibility and maintenance free performance. It is designed with an anticipated life of 5 million cycles to provide life-of-instrument performance. The VP17 delivers an economical balance of precision and high duty cycle performance using a molded acrylic (PMMA) pump head.
Standard Sizes 50 µL 100 µL 500 µL 1 mL 2.5mL 5mL
Max Operating Pressure psi Varies by pump size.
Max Operating Pressure Bar Varies by pump size.
Dispense Rate Max (mL/min) 3.7 (50 µL) to 75 (1 mL)
Dispense Precision 2% dispense: < 1.0% CV
Wetted Materials: Pump Head Acrylic
Wetted Materials: Seal UHMWPE, Viton, Customizable
Operating Temperature° F 60-100 F 15-45 C
Anticipated Life 2 million cycles
Voltage 24 V
Seal Wash Optional
Port Threads 1/4-28 or M6
Home Position Aspirate or Dispense
