Very High Pressure (VHP) Reusable Fittings offer an innovative design that can withstand the most extreme pressures. Our ground-breaking VHP fittings are capable of up to 10 repeat assembly cycles with no impact on pressure holding ability or carry-over. VHP Fittings are an ideal choice for today's high performance analytical systems. It is a one piece fitting, long, has a 10-32 Coned thread port configuration and is for 1/16 OD Tubing.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
52.44 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 10-32 Coned |
|---|---|
| Tubing OD | 1/16 inch |
| Material | Stainless Steel |
| Pressure Rating | 25000 psi (1725 bar) |
| Fitting Type | One Piece Fingertight |
| Head Style | 1/4" Hex |
total selected
Clear selection
Select all 1 products from all pages.

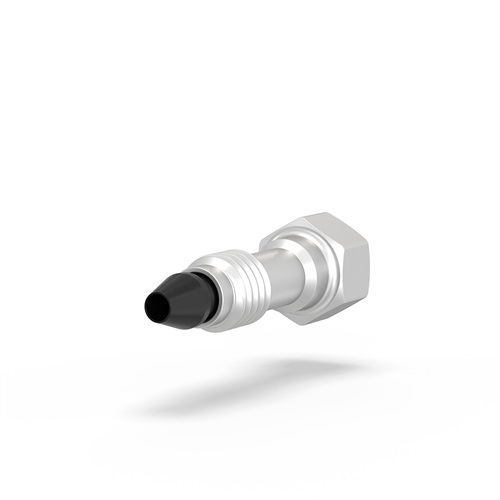

1/16" OD Fitting, VHP
VHP-320 / 0
- For 1/16" OD tubing mating with a 10-32 coned port
- Reusable
- Stainless steel nut with a black PEEK ferrule
- Recommended for pressures up to 25000 psi (1725 bar)
- 1/4" hex head
- 1 piece per pack
1 of 1
| Topic | Description |
| VHP-320 Series Fittings Instruction Guide | Learn how to install the VHP-320 series fittings onto tubing |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Fitting, VHP
VHP-320 / 0
- For 1/16" OD tubing mating with a 10-32 coned port
- Reusable
- Stainless steel nut with a black PEEK ferrule
- Recommended for pressures up to 25000 psi (1725 bar)
- 1/4" hex head
- 1 piece per pack
1 of 1
| Topic | Description |
| VHP-320 Series Fittings Instruction Guide | Learn how to install the VHP-320 series fittings onto tubing |
