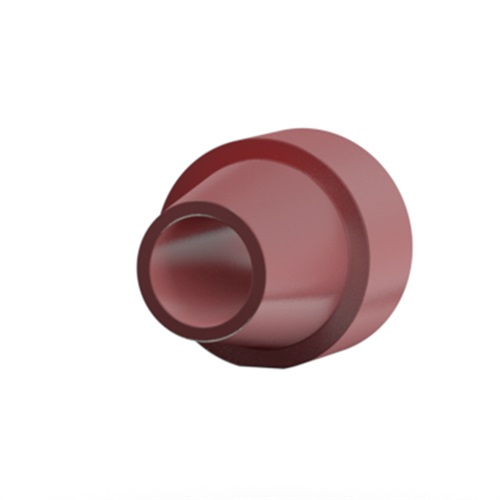

VacuTight Ferrules specifically designed size ensures sufficient nut/thread engagement even in shallow ports. Their unique 10-32 or 1/4-28 flat-bottom configuration can prevent over compression and tubing ID reduction that can occur with many fittings. This ferrule is for a 1/16 tubing OD and is available in red.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
1.79 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 10-32 Flat-Bottom, 1/4-28 Flat-Bottom, M6 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch |
| Material | ETFE |
| Pressure Rating | 800 psi (55 bar) |
| Fitting Type | Ferrule |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Fitting, VacuTight
P-844X / 0
- For use with 1/16" OD tubing mating with a 10-32 flat bottom port
- P-840 ferrule included
- Red ETFE ferrule, red PEEK fitting
- Recommended for pressures up to 800 psi (55 bar)
- Compatible with headless knurl extender tools
- 10 per pack
1 of 1
| Topic | Description |
| VacuTight™ Ferrules How-To Guide | Learn how to properly assemble a VacuTight™ Ferrule and VacuTight™ nut onto a piece of tubing |
total selected
Clear selection
Select all 1 products from all pages.
1/16" OD Fitting, VacuTight
P-844X / 0
- For use with 1/16" OD tubing mating with a 10-32 flat bottom port
- P-840 ferrule included
- Red ETFE ferrule, red PEEK fitting
- Recommended for pressures up to 800 psi (55 bar)
- Compatible with headless knurl extender tools
- 10 per pack
1 of 1
| Topic | Description |
| VacuTight™ Ferrules How-To Guide | Learn how to properly assemble a VacuTight™ Ferrule and VacuTight™ nut onto a piece of tubing |
