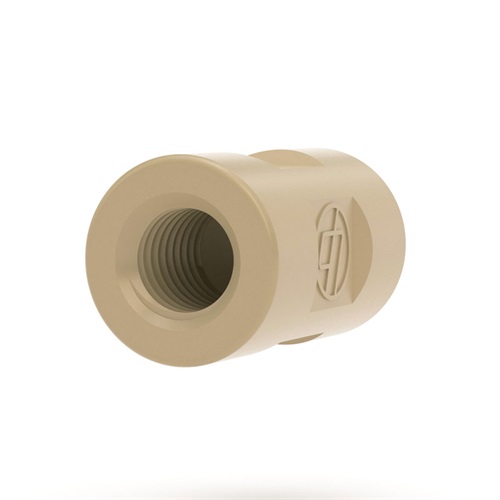

Our low pressure PEEK Union Assembly efficiently connects tubing in low pressure regions of a system where a dependable connection is imperative. Made from resilient PEEK it delivers excellent solvent resistance. It is designed for 1/8OD Tubing, has a 1/4-28 Flat Bottom thread port style and comes in natural color.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
16.56 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Thread Port Design | 1/4-28 Flat-Bottom |
|---|---|
| Tubing OD | 1/16 inch, 1/8 inch |
| Material | PEEK |
| Pressure Rating | 1000 psi (69 bar) |
| Fitting Type | Union |
total selected
Clear selection
Select all 1 products from all pages.
1/8" OD Fitting, Flangeless Short
XP-335 / 0
- For use with 1/8" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, yellow ETFE ferrule
- Include P-300 Flangeless ferrule
- Recommended for pressures up to 500 psi (34 bar)
- 1 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
total selected
Clear selection
Select all 1 products from all pages.
1/8" OD Fitting, Flangeless Short
XP-335 / 0
- For use with 1/8" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, yellow ETFE ferrule
- Include P-300 Flangeless ferrule
- Recommended for pressures up to 500 psi (34 bar)
- 1 per pack
1 of 1
| Topic | Description |
| Flangeless Fitting System Connection Guide | Use this guide to connect your fluidic path. |
