Modular Column System, 3.0 mm ID x 50 mm Length, 0.5 µm Frits

IDEX Part Number: 5041IP-05030-005-05  /

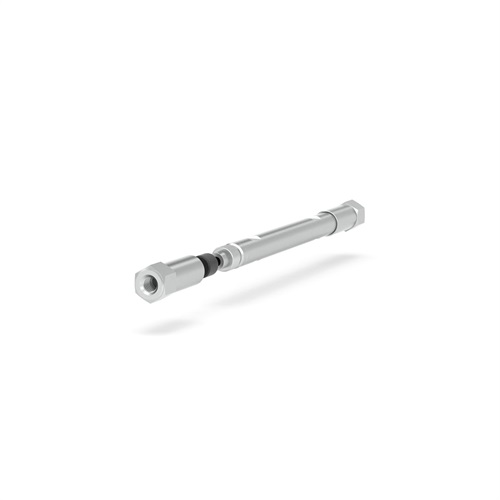

Modular column systems are designed for HPLC and UHPLC applications. The design guarantees a high-pressure seal between the tubing and end fitting as well as proper seating of the frit. The modular column family is rated up to 15K psi operating pressure. This kit contains a tube with 3.0 mm ID, 50 mm length, two frits with 0.5 um porosity, and two end fittings.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 60.41 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Material 316 Stainless Steel
Product Type Column Kit
Tubing ID (mm) 3.0
Length (mm) 50
Frit Material 316 Stainless Steel
Assembly Type Threaded
Pressure Rating Max (psi) 15000
Frit Porosity (µm) 0.5
Topic Description
Isobar, Modular, and Bioinert Packing Find which packing adapters to use with each column type by product line and size.
